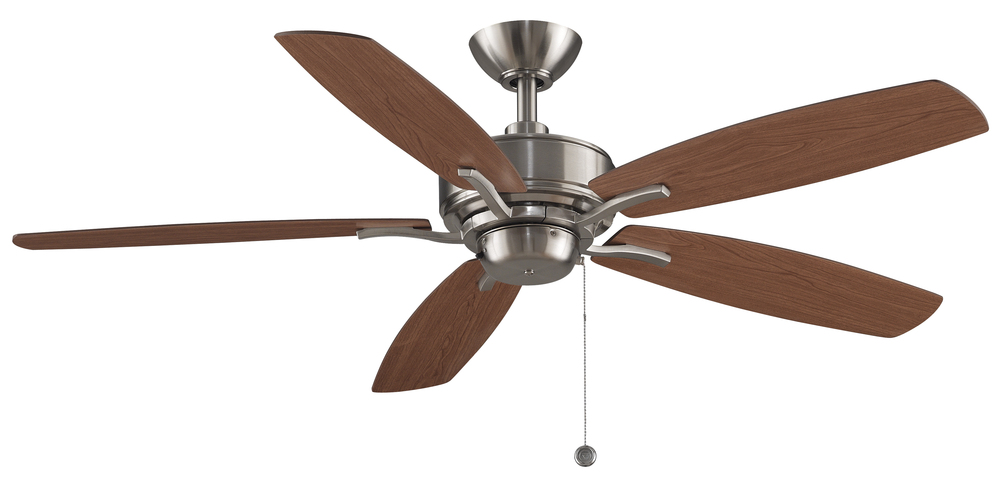

Aire Deluxe - 52 inch - BN with CY/DWA Blades (G2GM) by Fanimation FP6284BN
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
160
00
/
/ 1
($160.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
G2GM
Dimensions:
Height: 12.77"
Width: 52.00"
Length: 52.00"
Availability:
- Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
4908 Cubic Feet per Minute
Electricity Rate:
55 Watts (excluded lights)
Airflow Efficiency:
89 Cubic Feet Per Minute Per Watt
Description
Details
Downloads
Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Vendor Item #:
FP6284BN
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Nickel
Style:
Traditional
Option:
Dry Rated
Voltage:
10-99
Number of Blades:
5 Blades
Location Rating:
Dry Rated
Category:
Fan-Uni
Finish:
Brushed Nickel
Option:
Dry Rated
Family:
Aire Deluxe
Voltage:
120 V
Additional Info:
3 speed AC motor with reverse switch
, 3941 CFM on High
, Lifetime Limited Warranty
, Pull Chain Operated
, Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
4908
Air Flow Efficiency:
89
Amperage:
0.46
Blade Finish:
Cherry/Dark Walnut
Blade Pitch:
12
Blade Span:
52
Canopy:
5.91 Dia x 2.13 H
Diameter:
9.06
Down Rod Included:
4.5
Electricity Used:
55
Harmonized Codes:
8414.51.3000
Length:
52
Light Kit Included:
No
Material:
Wood
Motor Fan Speed:
3
Motor RPM:
158
Motor Size:
153 X 15
Motor Type:
AC
Pull Chain Included:
Yes
Ship Carton Height:
9.3
Ship Carton Length:
23
Ship Carton Width:
10.9
Ship Weight:
17.67
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
15.36
Airflow Efficiency Low:
183
Airflow Efficiency Medium:
126
Avg Airflow Efficiency:
102
Avg CFM Energy:
3496
Avg Energy Use Watts:
34
Avg Estimated Yearly Energy Cost:
10
Avg Estimated Yearly Energy Cost on HIGH:
15
Blade Finish Method:
Paper Overlay
Blade Material:
Wood
Blade Reversible:
Yes
Blade Sweep:
52
Canopy Diameter:
5.91 Dia
Canopy Height:
2.13 H
Cap Included:
No
Carton Cubic Feet:
1.35
Cartons Per Unit:
1
Case Height:
9.3
Case Length:
23
Case Quantity:
1
Case Weight Pounds:
17.67
Case Width:
10.9
CEC Uploaded:
Yes
Ceiling To Blade Edge:
10.59
Ceiling To Bottom:
12.77
CFM Low:
1897
CFM Medium:
3288
Compatible Accessories:
CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCK1-52BN
Compatible Controls:
BTCR9, BTR9, CR500, CRL4WH, WFR50
Compatible Wall Controls:
CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin:
China
Current Draw High:
0.46
Current Draw Low:
0.2
Current Draw Medium:
0.33
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Dry Rated:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
9.06
Included Control Type:
Pull Chain
Leadwire:
54
Max Ceiling Slope:
19
Max Watt:
55
Maximum Slope Degree:
19
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
5
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High (VI):
158
RPM Low (II):
66
RPM Medium (IV):
113
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
10
Watts Medium:
26
Manufactured By:
Fanimation
Additional Information:
- 3 Speed Ac Motor With Reverse Switch
- 3941 Cfm On High
- Lifetime Limited Warranty
- Pull Chain Operated
- Set Of 5 Reversible 52 Inch Blades And (2) 9 Watt Led Bulbs And Light Kit Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
