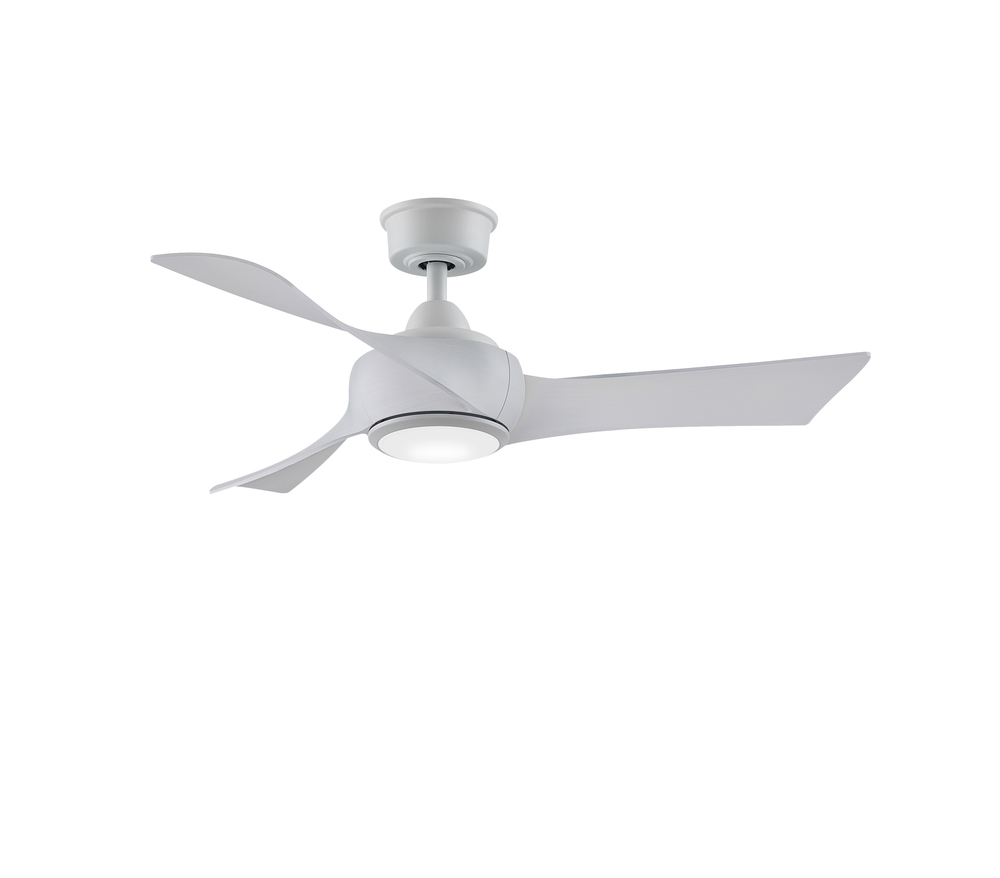

Wrap Custom Motor - MW (G7AR) by Fanimation MAD8530MW
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
430
00
/
/ 1
($430.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
G7AR
Dimensions:
Height: 12.46"
Width: 44.00"
Length: 44.00"
12.46
, 13.05
Availability:
- Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
7141 Cubic Feet per Minute
Electricity Rate:
36 Watts (excluded lights)
Airflow Efficiency:
200 Cubic Feet Per Minute Per Watt
Description
Details
Downloads
Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Vendor Item #:
MAD8530MW
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
White
Style:
Traditional
Option:
Energy Star
, Damp Rated
Voltage:
10-99
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Wattage:
8w
Category:
Fan-Multi
Finish:
Matte White
Option:
Damp
Family:
Wrap Custom
Voltage:
120 V
Additional Info:
7141 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and
, ENERGY STAR Most Efficient 2020
, Set of 3 Damp Rated blades with multiple finish options and 18 watt LED light kit (sold separately)
, TR205D handheld remote with CR2032 batteries included
Air Flow CFM:
7141
Air Flow Efficiency:
200
Amperage:
0.49
Blade Pitch:
Varied
Canopy:
6.14 Dia x 2.55 H
Diameter:
8.88
Down Rod Included:
4.5
Electricity Used:
36
Harmonized Codes:
8414.51.3000
Length:
44, 48, 52, 56, 60
Light Kit Included:
No
Max Length:
60
Max Width:
60
Motor Fan Speed:
16
Motor RPM:
138
Motor Size:
158 X 22
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
7.6
Ship Carton Length:
16.34
Ship Carton Width:
8.86
Ship Weight:
14.99
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
12.13
Airflow Efficiency Low:
404
Airflow Efficiency Medium:
552
Avg Airflow Efficiency:
211
Avg CFM Energy:
5114
Avg Energy Use Watts:
24
Avg Estimated Yearly Energy Cost:
7
Avg Estimated Yearly Energy Cost on HIGH:
10
Canopy Diameter:
6.14 Dia
Canopy Height:
2.55 H
Cap Included:
Yes
Carton Cubic Feet:
0.64
Cartons Per Unit:
1
Case Height:
7.6
Case Length:
16.34
Case Quantity:
1
Case Weight Pounds:
14.99
Case Width:
8.86
CEC Uploaded:
Yes
Ceiling To Blade Edge:
11.83
Ceiling To Bottom:
12.46
, 13.05
CFM Low:
728
CFM Medium:
4359
Compatible Accessories:
CCK8002MW, DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCB1-52
Compatible Blades:
BPW8530-44BL, BPW8530-44BN, BPW8530-44DWA, BPW8530-44N, BPW8530-44WE, BPW8530-44WW, BPW8530-48BL, BPW8530-48BN, BPW8530-48DWA, BPW8530-48N, BPW8530-48WE, BPW8530-48WW, BPW8530-52BL, BPW8530-52BN, BPW8530-52DWA
, BPW8530-52N, BPW8530-52WE, BPW8530-52WW, BPW8530-56BL, BPW8530-56BN, BPW8530-56DWA, BPW8530-56N, BPW8530-56WE, BPW8530-56WW, BPW8530-60BL, BPW8530-60BN, BPW8530-60DWA, BPW8530-60N, BPW8530-60WE, BPW8530-60WW
Compatible Light Kits:
LK8530MW
Compatible Wall Controls:
TW306
Country of Origin:
China
Current Draw High:
0.49
Current Draw Low:
0.04
Current Draw Medium:
0.13
Damp Rated:
Yes
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
8.88
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Max Ceiling Slope:
27
Max Watt:
36
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
138
RPM Low (II):
29
RPM Medium (IV):
88
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
2
Watts Medium:
8
Manufactured By:
Fanimation
Additional Information:
- 7141 Cfm On High
- Compatible With Most Smart Home Devices (required Controls Sold Separately)
- Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
- Energy Star Most Efficient 2022
- Set Of (3) Damp Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
- Tr305 Handheld Remote With 23a Battery Included
