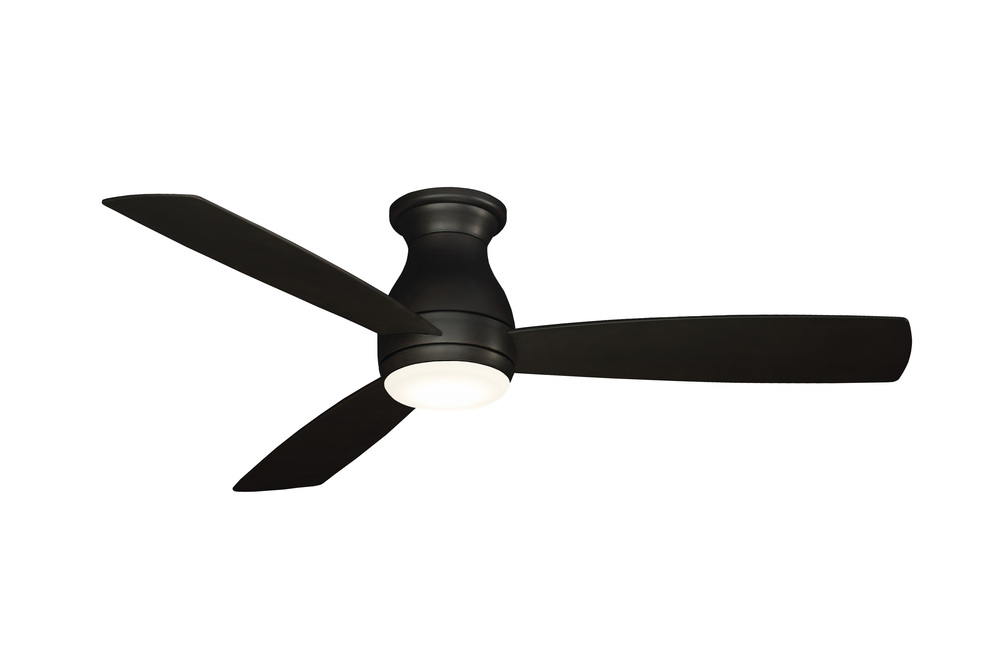

Hugh - 52 inch - DZW with LED Light Kit (K158) by Fanimation FPS8355BDZW
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
400
00
/
/ 1
($400.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
K158
Dimensions:
Height: 11.74"
Width: 52.00"
Length: 52.00"
11.35
, 11.74
Availability:
- Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
5104 Cubic Feet per Minute
Electricity Rate:
52 Watts (excluded lights)
Airflow Efficiency:
99 Cubic Feet Per Minute Per Watt
Recommended Items
Description
Details
Downloads
Strong, sturdy, and ready for anything. Hugh is wet rated and offers its users powerful airflow for any indoor or outdoor space in both 44" and 52" inches. Made from metal for durability, Hugh brings cooling with 3 speeds for preference. Integrated into the fan body is a dimmable LED light kit for additional luminance in dark areas. Hugh includes a handheld remote and a light cap with purchase. *Wet Rated for indoor or outdoor use *Reversible airflow for multi-season use
Vendor Item #:
FPS8355BDZW
Category:
Exterior
, Fans
Subcategory:
Exterior Fans
, Outdoor Fans
Finish:
Bronze
Style:
Traditional
Option:
Wet Rated
, LED
Voltage:
10-99
Glass Finish or Style:
Frosted
, Opal
Lumens:
1101-1600
Number of Blades:
3 Blades
Subfinish:
Dark Bronze
Location Rating:
Wet Rated
Wattage:
18w
Category:
Fan-Uni
Finish:
Dark Bronze
Option:
Wet
Family:
Hugh 52
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
3 speed AC motor with reverse switch
, 3785 CFM on High
, Limited Lifetime Warranty
, Set of (3) 44 or 52 inch Wet Rated blades and 18 watt LED light kit with cover and bulbs included
, TR500 handheld remote with 23A battery included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
5104
Air Flow Efficiency:
99
Amperage:
0.43
Blade Finish:
Dark Bronze
Blade Pitch:
12
Bulb Type:
18 Watt LED Module
Canopy:
6.77 Dia
Diameter:
7.85
Electricity Used:
52
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
52
Light Kit Included:
Yes
Lumens / Light Output:
1400
Material:
Composite
Motor Fan Speed:
3
Motor RPM:
171
Motor Size:
153 x 20
Motor Type:
AC
Remote Control Included:
TR500
Ship Carton Height:
10.55
Ship Carton Length:
25.2
Ship Carton Width:
9.65
Ship Weight:
18.69
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
16.53
Airflow Efficiency Low:
160
Airflow Efficiency Medium:
120
Avg Airflow Efficiency:
98
Avg CFM Energy:
3392
Avg Energy Use Watts:
35
Avg Estimated Yearly Energy Cost:
10
Avg Estimated Yearly Energy Cost on HIGH:
15
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
18
Canopy Diameter:
6.77 Dia
Cap Included:
Yes
Carton Cubic Feet:
1.48
Cartons Per Unit:
1
Case Height:
10.55
Case Length:
25.2
Case Quantity:
1
Case Weight Pounds:
18.69
Case Width:
9.65
CEC Uploaded:
Yes
Ceiling To Blade Edge:
9.36
Ceiling To Bottom:
11.35
, 11.74
CFM Low:
2188
CFM Medium:
3595
Compatible Controls:
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls:
CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin:
China
CRI:
90
Current Draw High:
0.43
Current Draw Low:
0.22
Current Draw Medium:
0.32
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
7.85
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
11
Light Kit Energy Star:
No
Max Watt:
52
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High (VI):
171
RPM Low (II):
83
RPM Medium (IV):
128
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
14
Watts Medium:
30
Watts Per Bulb:
18
Wet Rated:
Yes
Manufactured By:
Fanimation
Additional Information:
- 3 Speed Ac Motor With Reverse Switch
- 3785 Cfm On High
- Limited Lifetime Warranty
- Set Of (3) 44 Or 52 Inch Wet Rated Blades And 18 Watt Led Light Kit With Cover And Bulbs Included
- Tr500 Handheld Remote With 23a Battery Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
